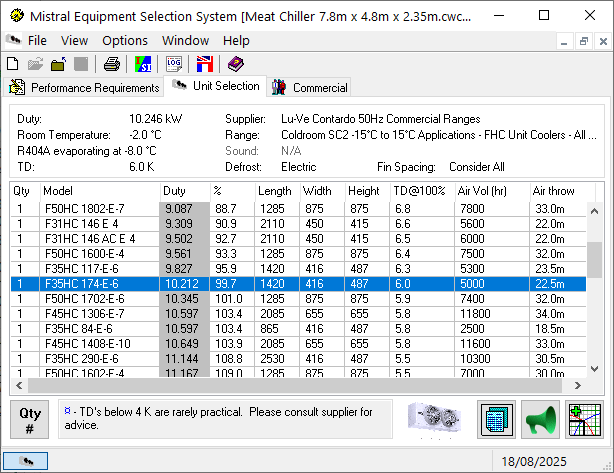

Having confirmed an equipment item selection by highlighting it.

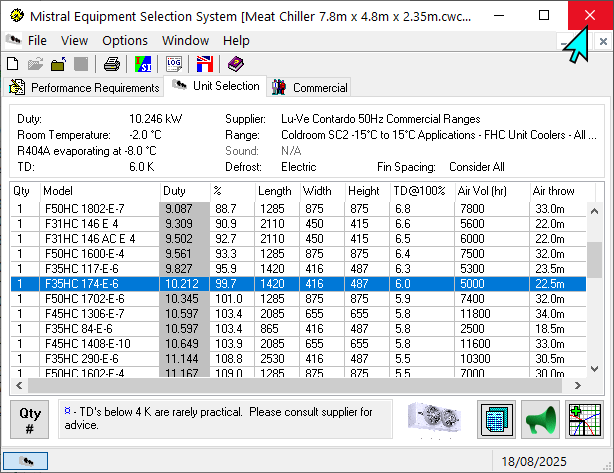

Next, click on X at top right of the open form to close it.

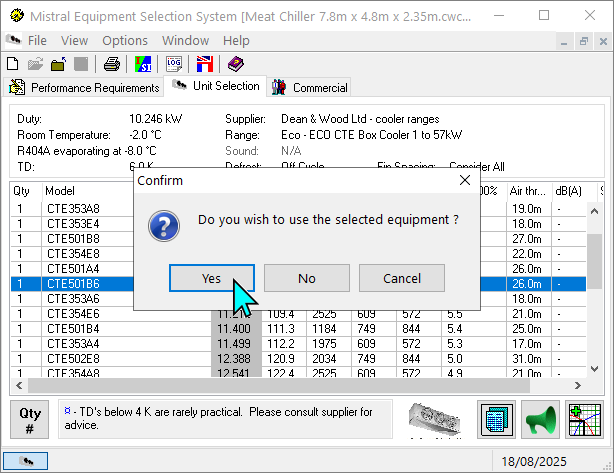

Confirm that you wish the selected item to be shown on the Room Designer plan.

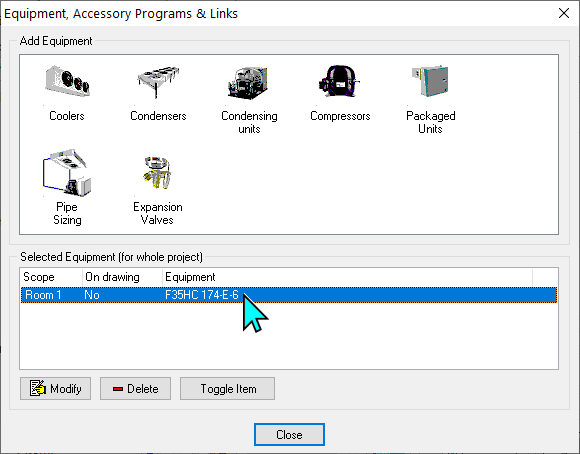

Highlight the item(s) you wish to include on the Room Designer plan.

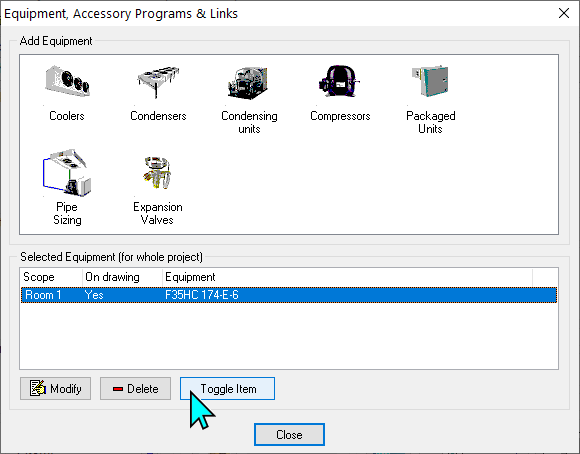

Click on 'Toggle item to confirm your selection and this will change the word under tab 'On drawing' from No to Yes.

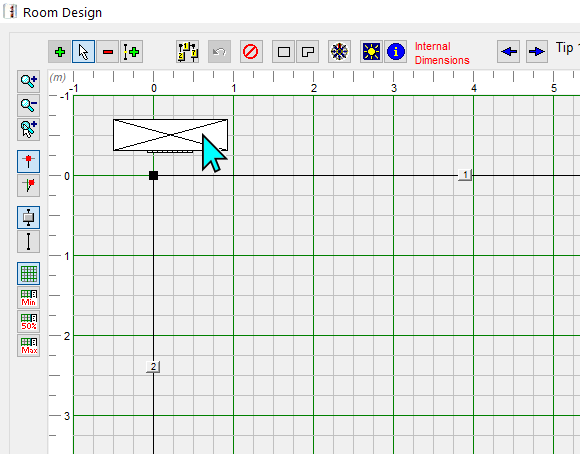

Open the Room Designer in the load calculation App and a 'Tile' showing selected equipment item(s) should appear in the space at the top of the grid.

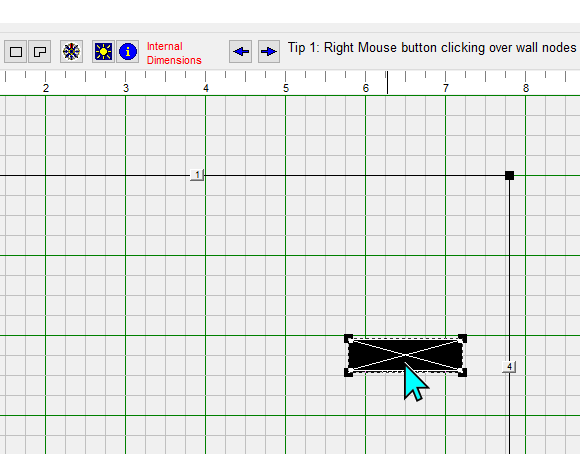

Focus Mouse Cursor over items which you wish to appear INSIDE the room and 'Drag & Drop' them into the inside of the room.
Note: Once a Unit Cooler has been dragged inside a Coldroom or Freezer it cannot be returned to the space outside. Whereas a Condensing Unit can appear to be either inside or outside, so as to indicate the unit has been placed outside and on the roof of the structure.

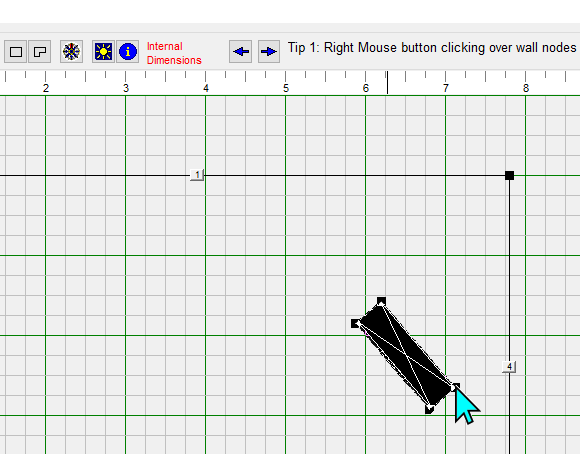

Again using the Mouse Cursor to Drag & Drop, equipment items can be rotated through all 360 degrees so as to match desired fixing positions. Particularly useful for room with walls set at angles to one another other than at 90 degrees.
Items added to room plans will be retained in saved calculation files #.awc and #.cwc etc.
A couple of tips!
1. Use the ‘zoom in’ tool when performing delicate functions such as rotating a unit cooler to match a none horizontal or perpendicular wall angle.
2. If whilst still holding down the left Mouse button you move the cursor away from the node you will ‘increase the leverage’ of control you have over rotation of the tile. Thus enabling you to achieve far finer angle position control.

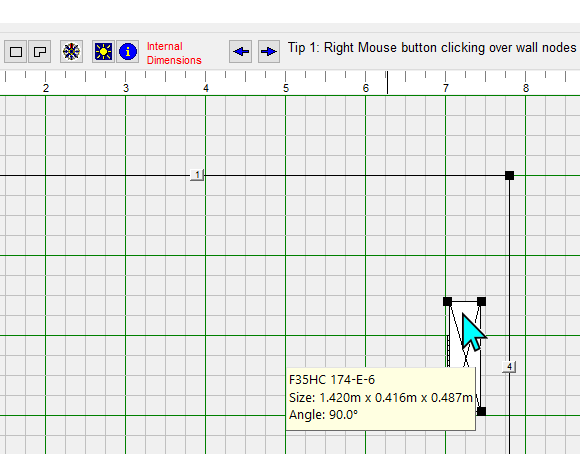

Note that the position angle for the currently selected equipment tile, relative to the vertical edge of the drawing form, is displayed at the bottom left of the drawing form.
